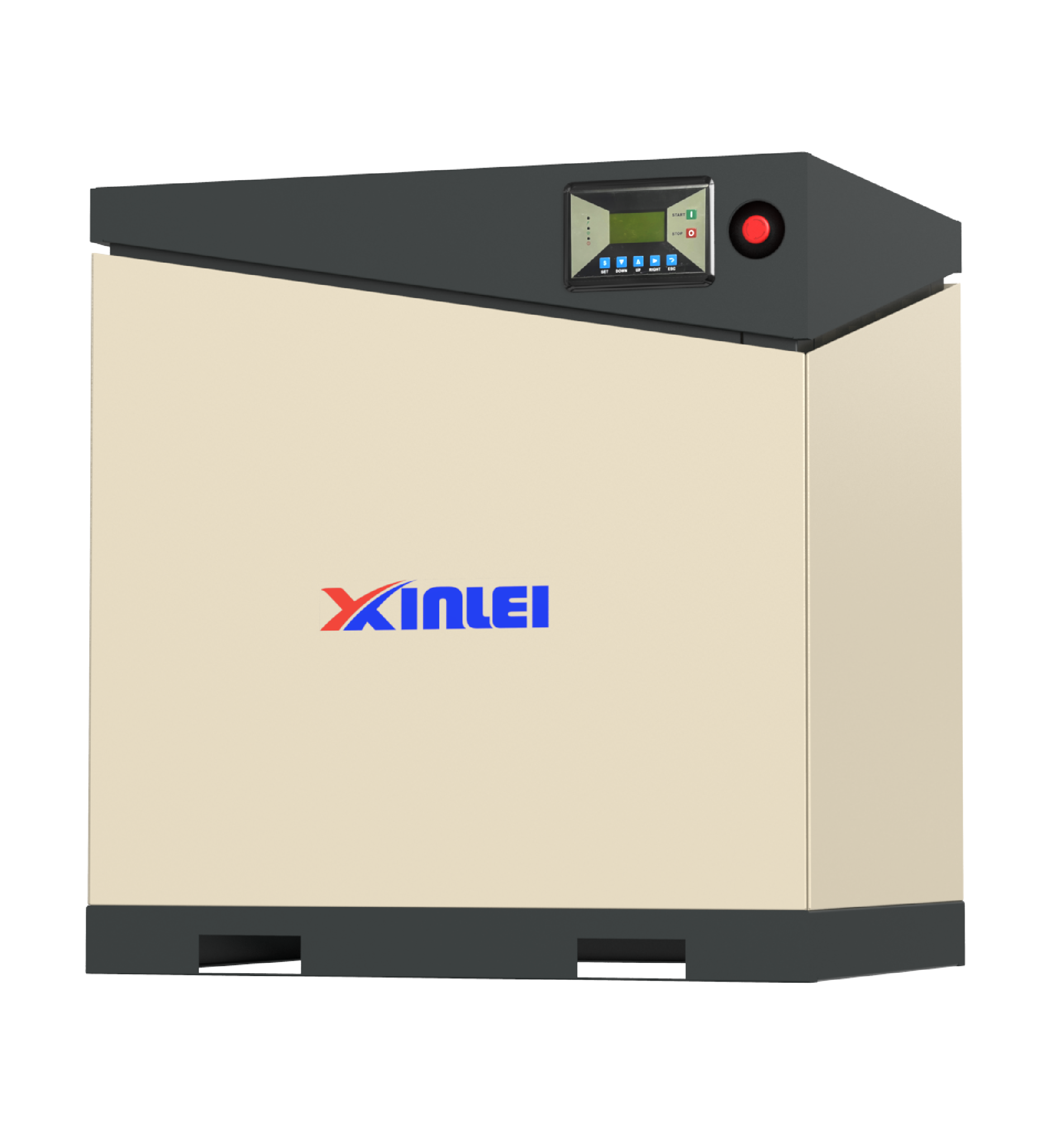

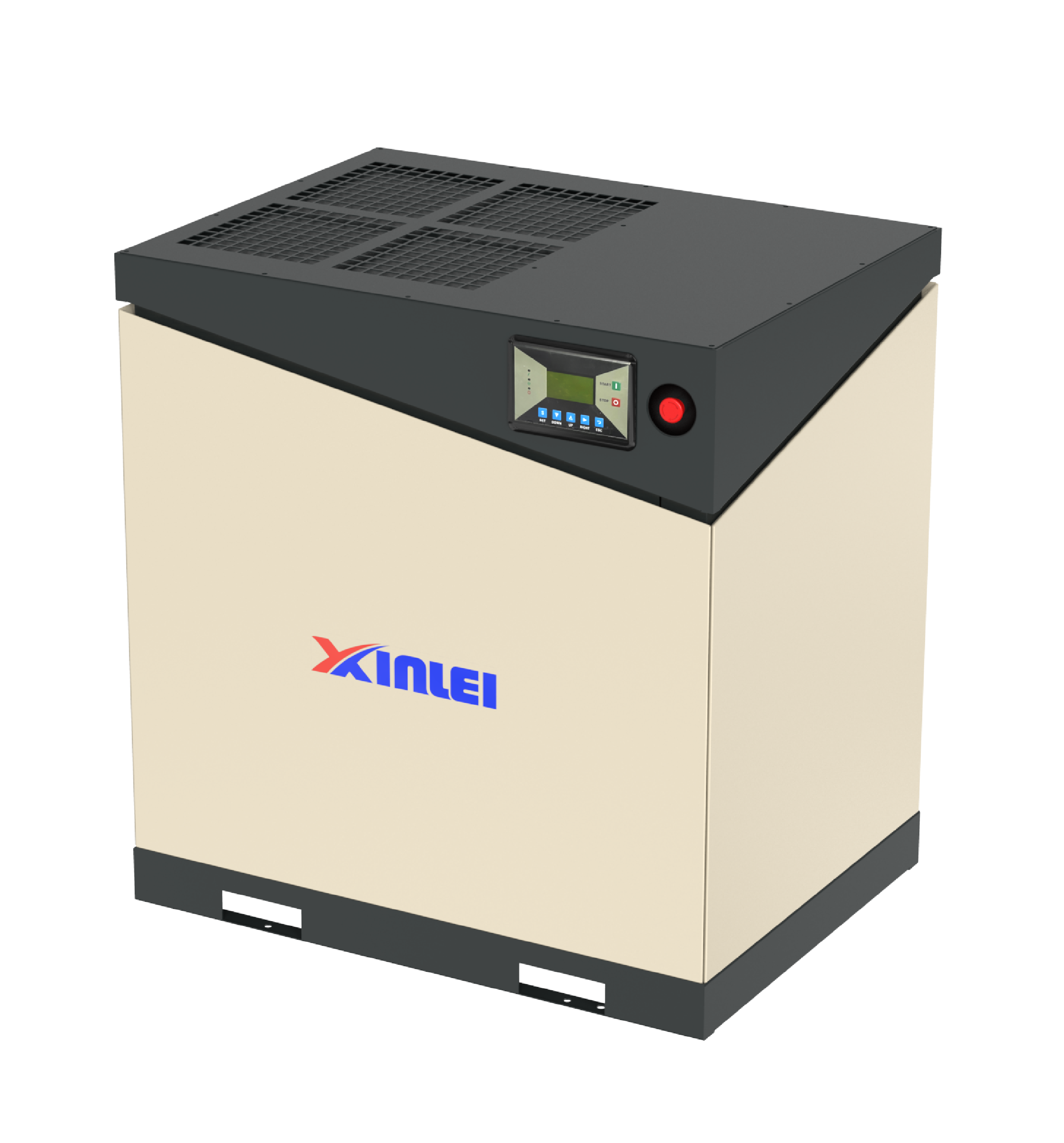

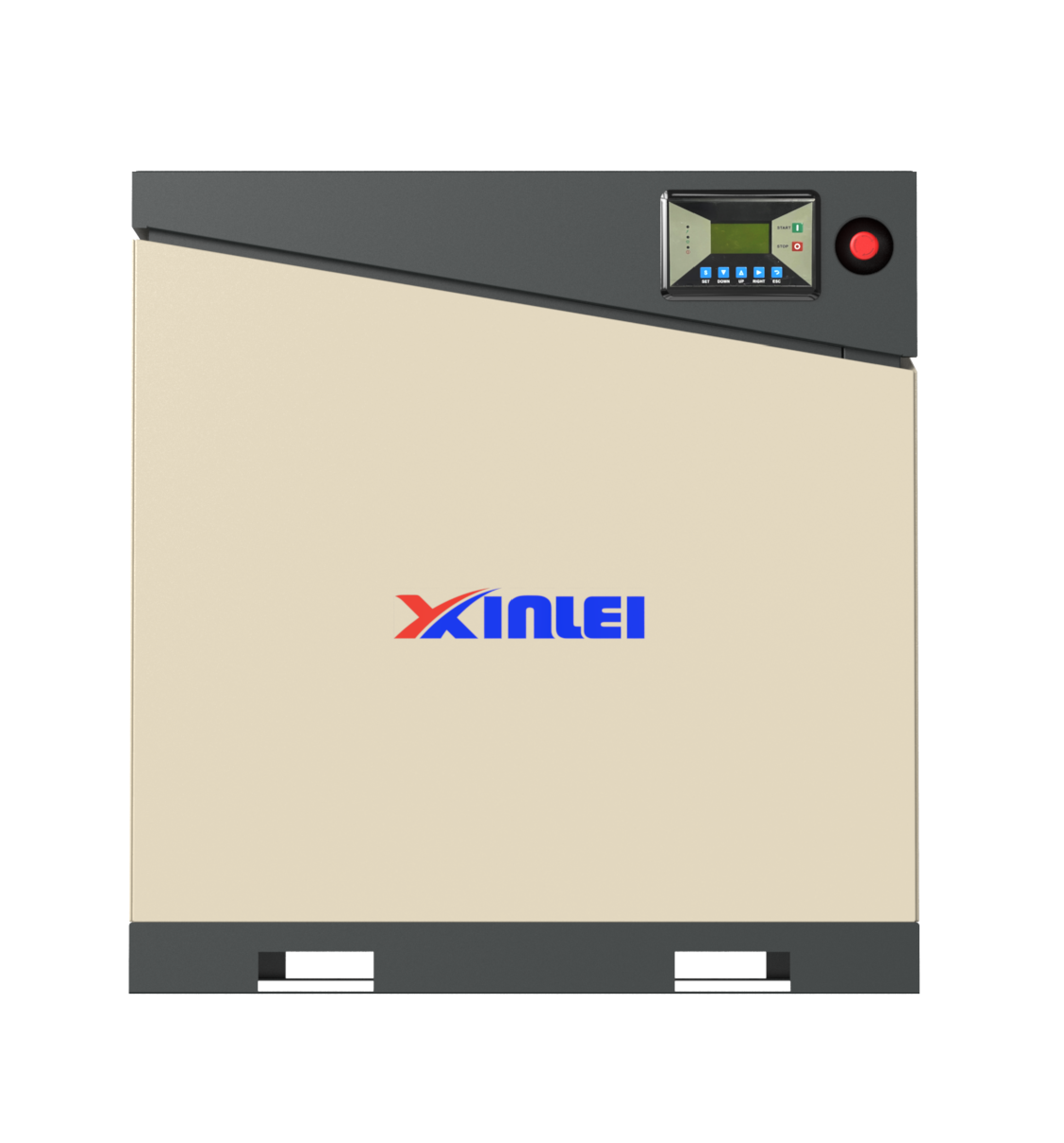

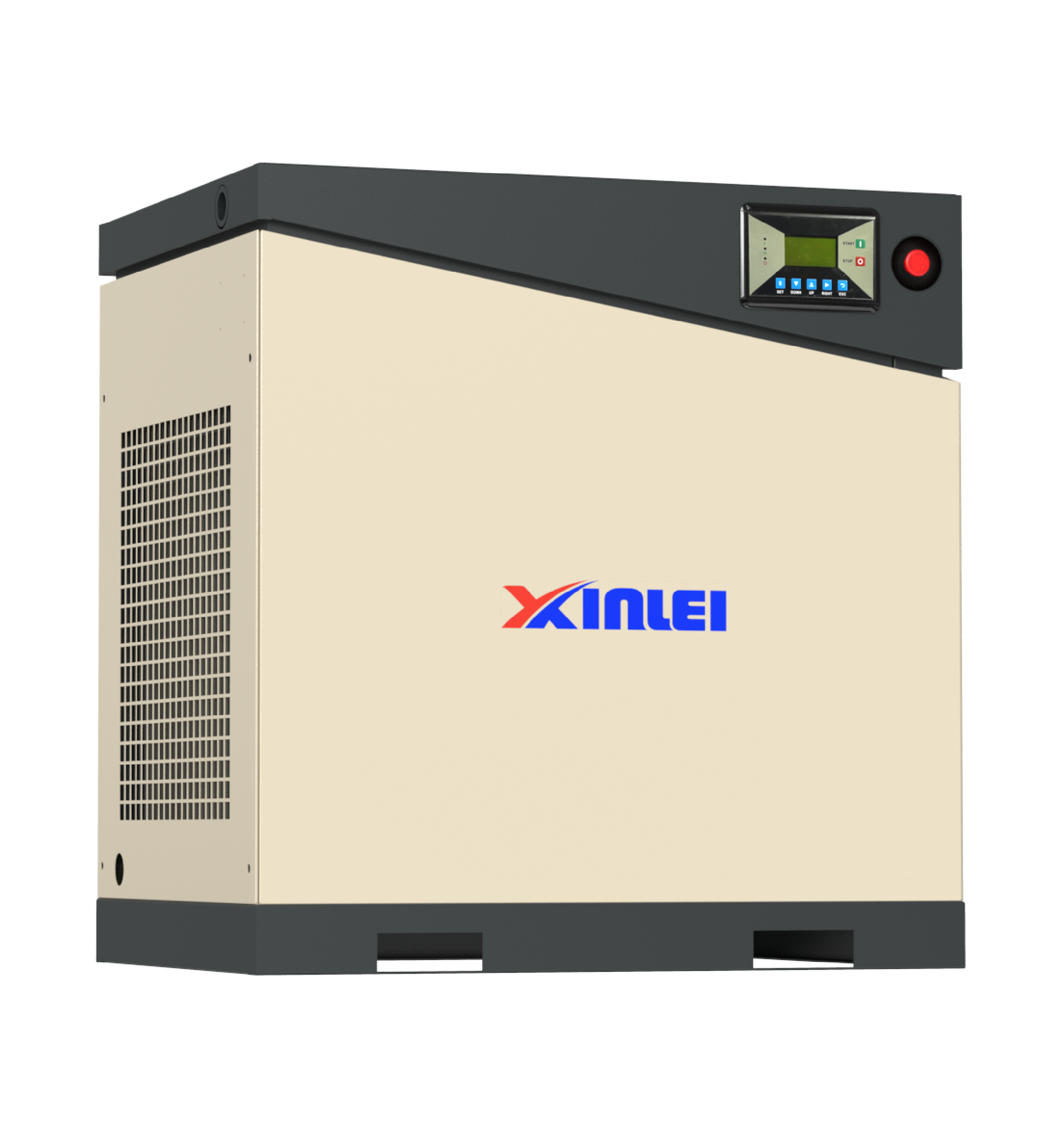

OEM fix speed screw compressor

The fix speed compressor has one-piece type transmission design make unit’s volume nearly 50% smaller than ordinary directly-connected type transmission design, while the weight is 1/3 lighter.
This kind of structural design does not require components such as coupling, centre bracket, belt, gear, etc and the motor has no bearing and oil seal, so regular maintenance cost has been greatly reduced.

Power:5.5-132 kwPressure:7/8/10 bar

Get Product Quotation

Download Product Information

Features Core Technology Machine structure

Features

Coaxial integrated direct connection technology

No intermediate transition such as center bracket, coupling, pulley, gear and other linkage components. Transmission zero loss. Transmission efficiency 100%

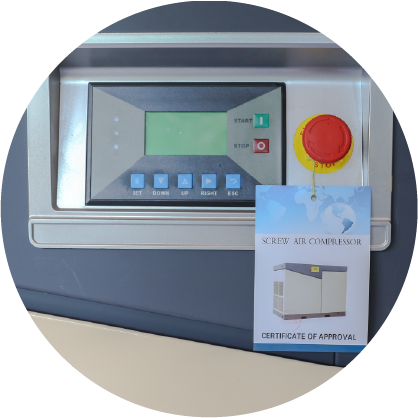

Smart IOT

Optional: IOT remote control, standard with air energy operation and maintenance platform

Core Technology

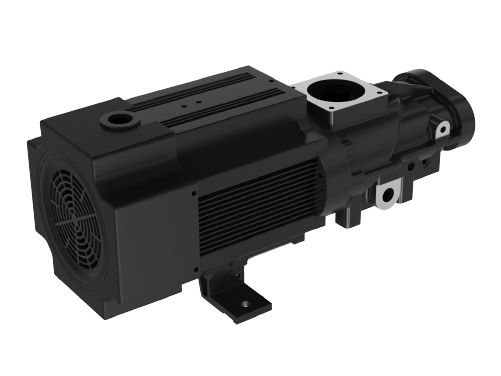

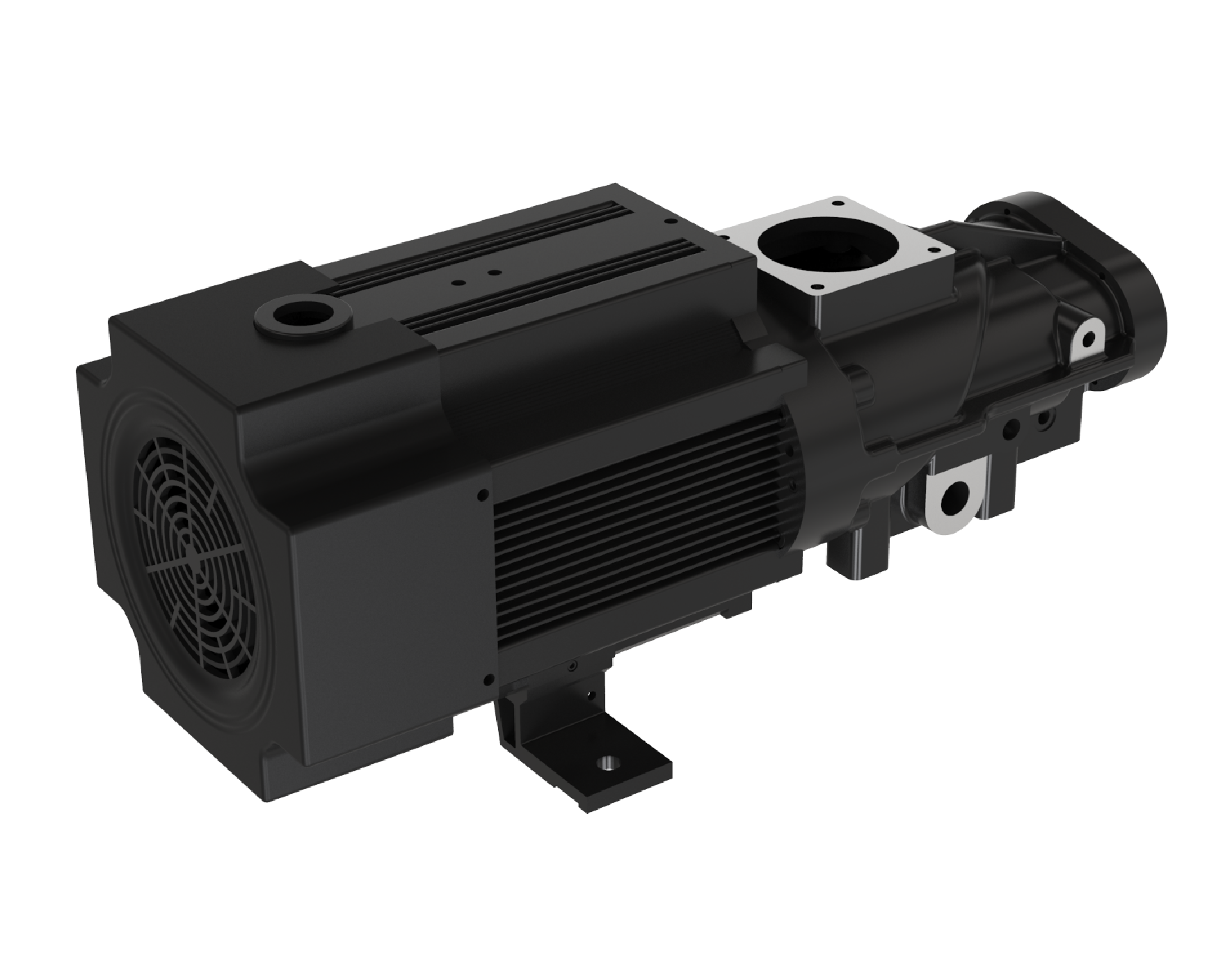

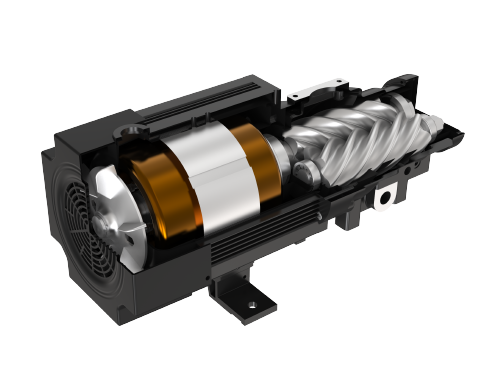

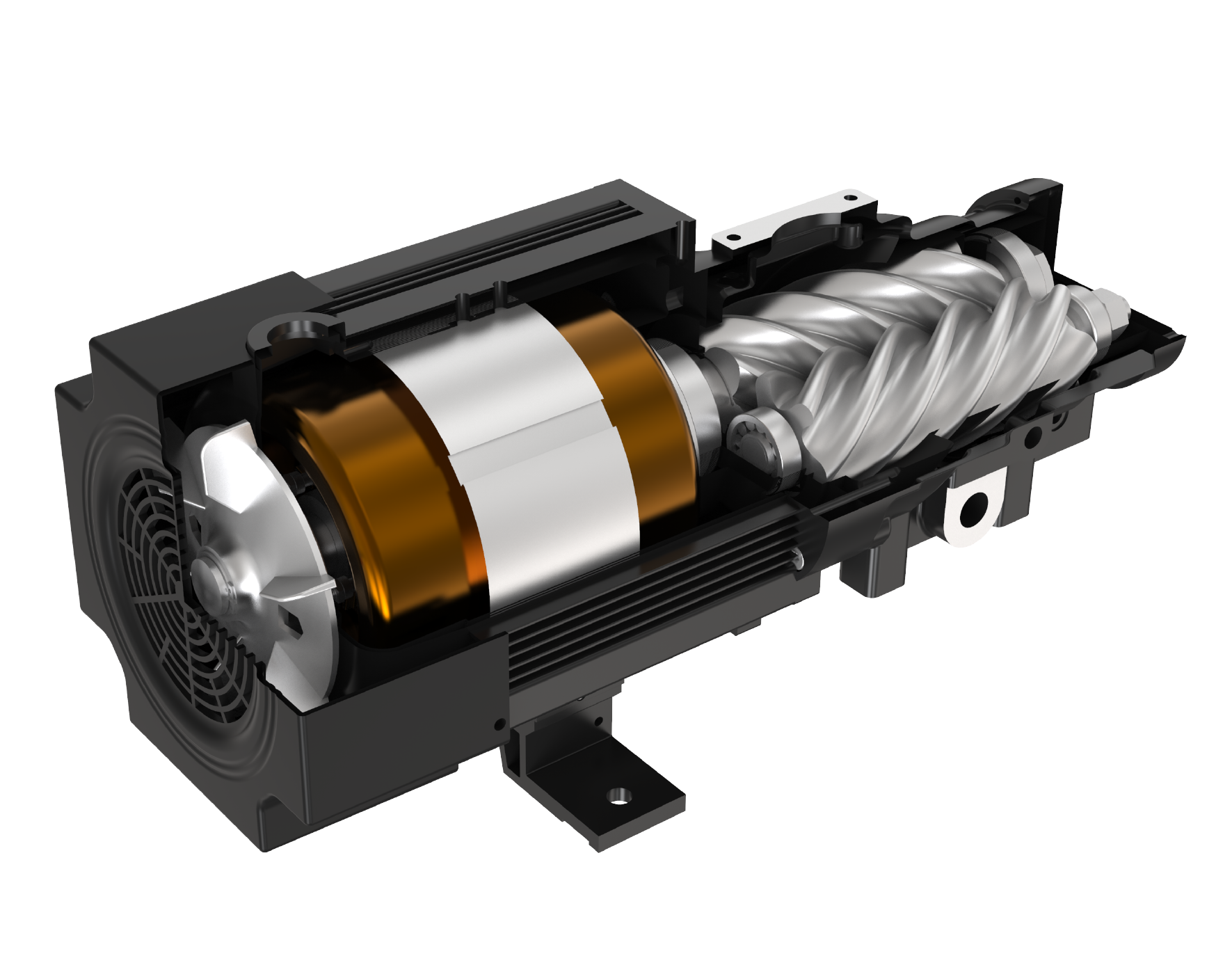

Coaxial all-in-one design

The host and motor share a shaft design, without intermediate transition parts, such as a centre bracket, coupling, pulley, gear, etc.Transmission loss is reduced to zero, and transmission efficiency is 100%

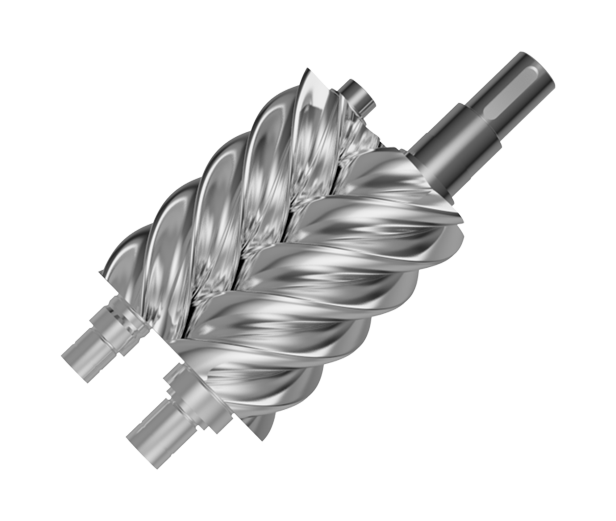

High-efficiency screw host

The host adopts a new generation of the asymmetrical profile, 5:6 spiral rotor, from line seal to seal technology upgrade, improving gas production efficiency and large rotor diameter.Low speed ensures that the host noise is small and long life.

High-efficiency permanent magnet synchronous motor

No rotor slip, no electrical excitation, no fundamental iron and copper losses in the rotor and less heat generation, reducing stator current and stator resistance losses.

Machine structure

Oil&Air separator

-Bigger oil and air separator and oil separator element, improving the initial separation efficiency, making the oil content less than or equal to 3ppm.

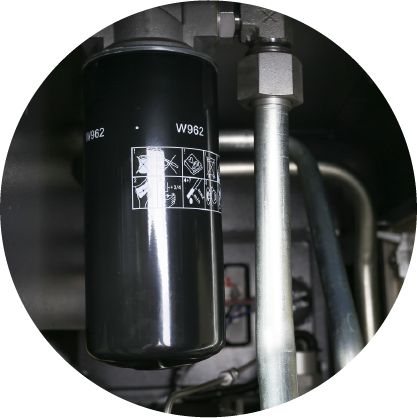

Oil filter

-Oil filter fitness is 25um, which can effectively guarantee the clean lubricating oil supply to the main system and improve the service life of the air end.
